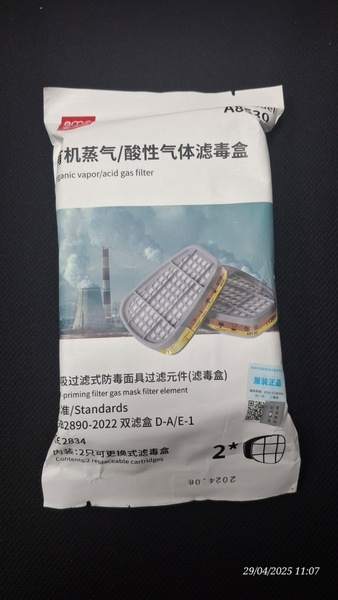

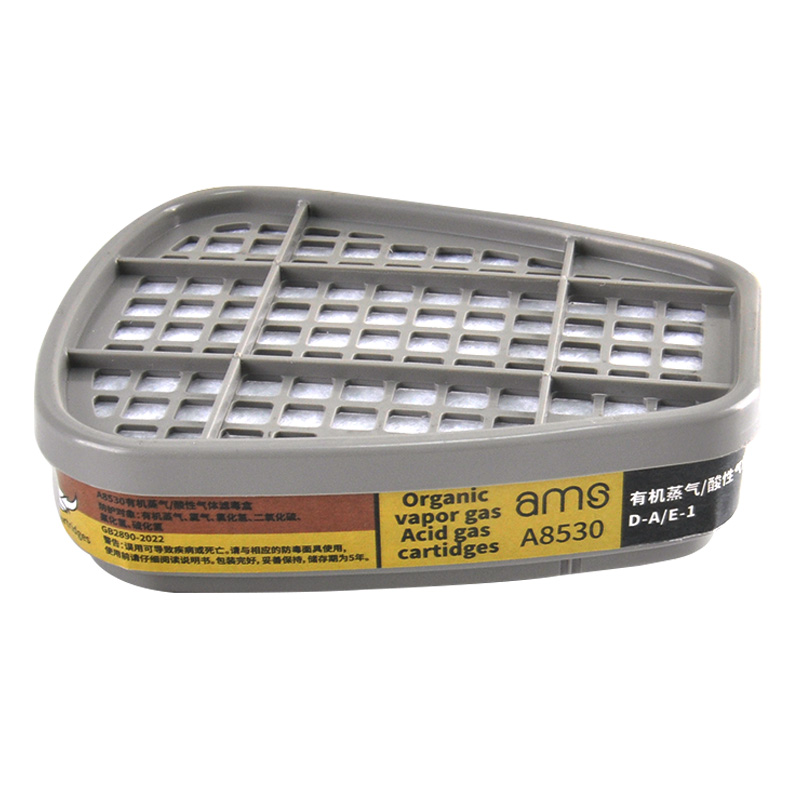

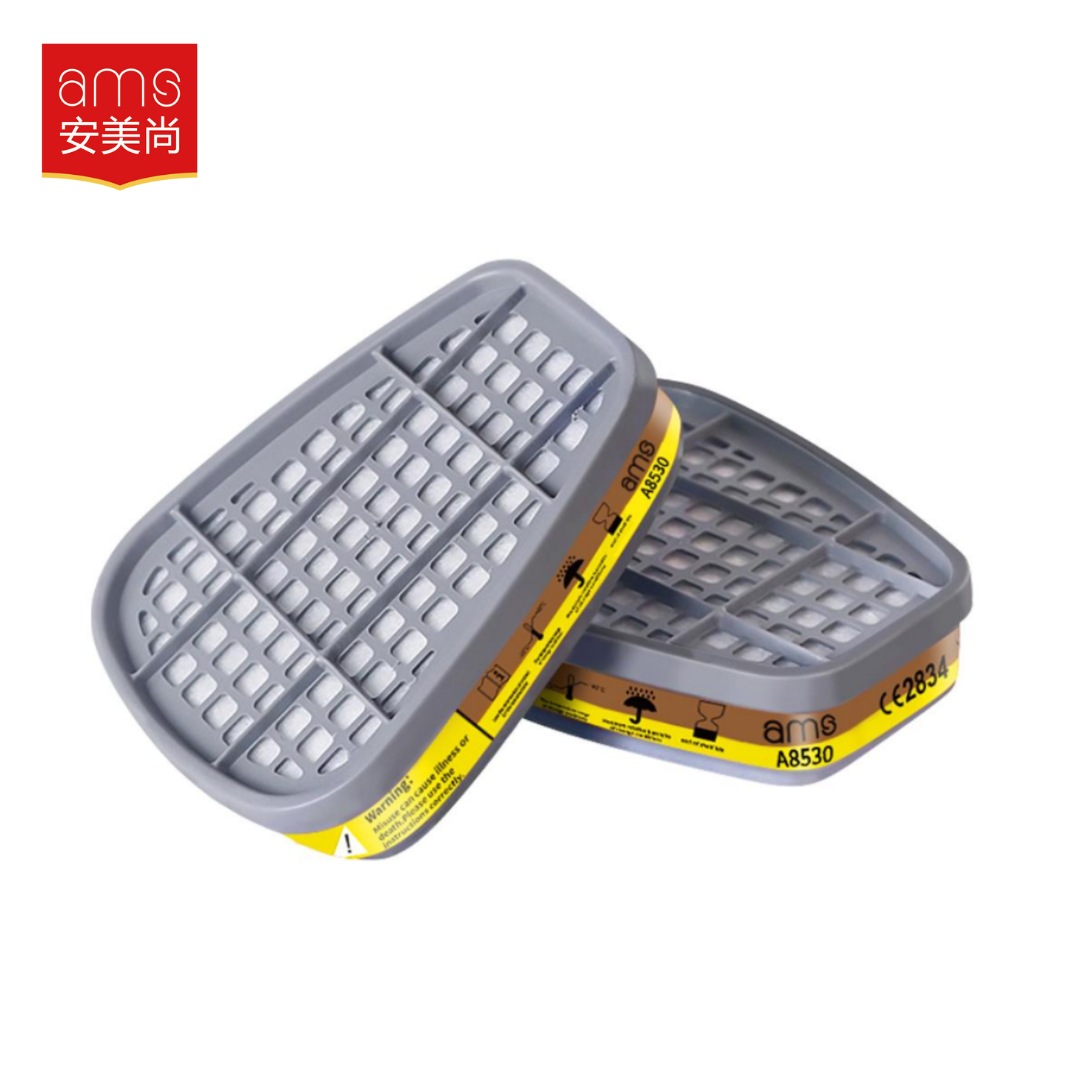

Organic and acid gas filter box CE2834 A8530 (for twin-cartridge respirators)
Certain organic vapors, Sulfur Dioxide, Hydrogen Chloride, Chlorine, Hydrogen Fluoride, Hydrogen Sulfide. Organic vapors, acid gases including hydrochloric acid, sulfur dioxide, hydrofluoric acid, Acetic Acid, NaOH, HNO3
-
Organic Vapors
The filter cartridge contains high-quality activated carbon components to effectively absorb common organic vapors and solvents found in industry, such as:
-
Paints, printing inks, surface coatings.
-
Organic solvents (paint thinners, benzene, toluene, xylene, acetone, formaldehyde, etc.).
-
Adhesives, synthetic resins.
-
Gasoline and petroleum products.
-
Agricultural chemicals (certain pesticide vapors/gases).
-
Acid Gases / Inorganic Gases
As noted regarding acids, the 3M 6003 filter cartridge is specifically designed to filter the following specific acid and inorganic gases:
-
Hydrogen Chloride (HCl vapor).
-
Chlorine ($Cl_2$).
-
Sulfur Dioxide ($SO_2$).
-
Hydrogen Fluoride (HF).
-
Chlorine Dioxide ($ClO_2$).
-
Hydrogen Sulfide ($H_2S$ - only within permissible limits according to standard ratings).
Safety Recommendations:
❗ Only use in professional working environments where risk assessments have been conducted and thorough control systems are in place.
❗ Always perform a seal check (fit check) before entering hazardous areas.
❗ Do not use the filter box if:
It is expired or has exceeded the recommended usage time.
It is damaged, deformed, or contaminated beyond cleaning.
❗ Replace immediately when you feel an increased resistance to inhalation.
❗ If you smell or taste anything unusual while wearing it correctly, leave the area and replace the filter cartridge.
❗ Stop use immediately if you experience dizziness, irritation, or respiratory abnormalities.
Do not use in the following cases:
-
❌ Environments with an oxygen concentration below 19.5%, for example:
-
Confined spaces, cellars, storage tanks, etc.
-
-
❌ Environments where contaminant concentrations exceed legal limits or fall into the IDLH (Immediately Dangerous to Life or Health) category.
-
❌ If you have a beard, mustache, or facial hair that prevents the respirator from making complete contact with facial skin ➜ reduces protective efficiency.
📌 Always check the mask seal before working in hazardous environments.
Replacement & Maintenance Instructions:
-
🔄 Replace the filter box according to the manufacturer's operating instructions – before reaching the usage limit.
-
⛔ Do not disassemble or open the filter box. Altering the structure may destroy filtration capabilities.
-
💧 Avoid water or steam entering the filter box during use.
-
🛑 Discontinue use if you experience:
-
Gas odor leaking through the mask.
-
Abnormal breathing difficulty.
-
Deformed, discolored, or damaged filter box.
-
Risks of Improper Use:
Improper use, installation, or maintenance can:
-
Reduce filtration efficiency.
-
Lead to poisoning, respiratory injury, or even death.
