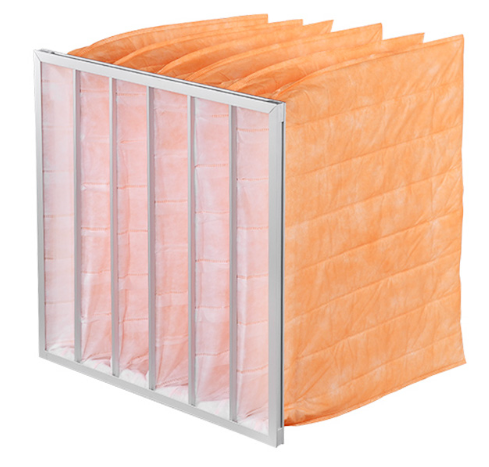

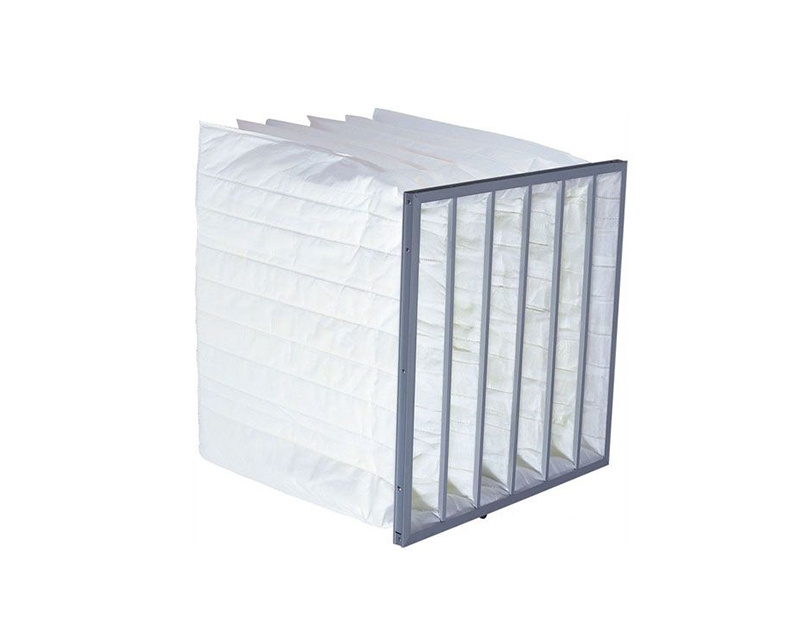

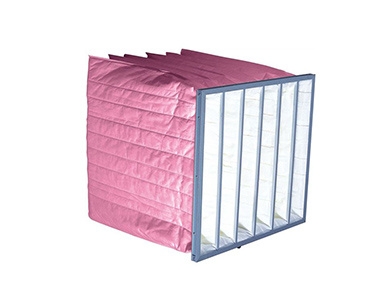

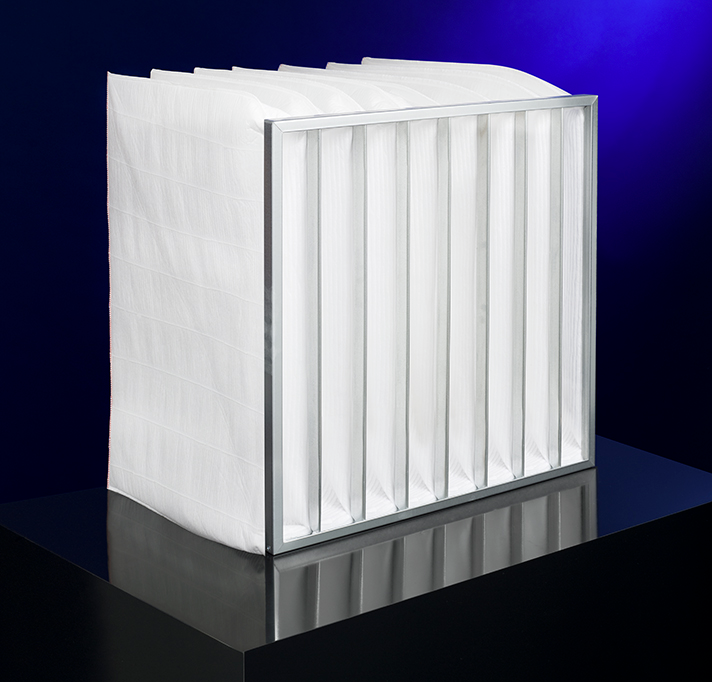

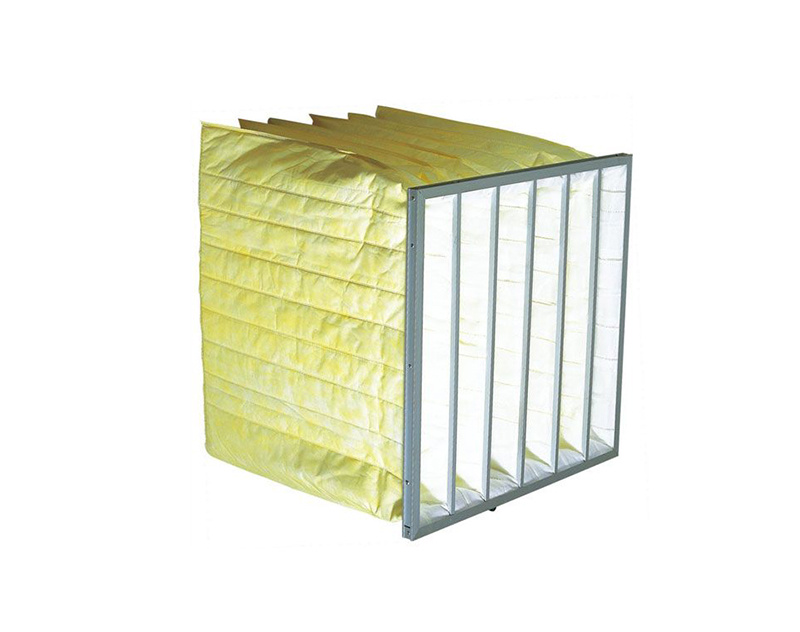

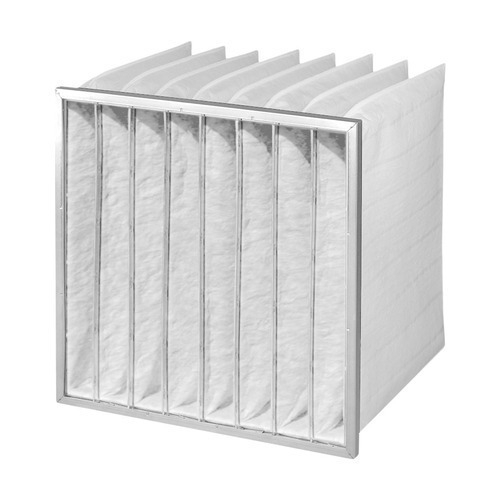

Bộ lọc túi tổng hợp( Synthetic fiber pocket filter)

Vật liệu lọc: Sợi tổng hợp có mật độ gia tăng theo từng cấp độ, được biên nhiệt kết dính

Vật liệu khung: Nhôm hoặc sắt mã kẽm

Tiêu chuẩn: EN799: G2, G3, G4, F5, F6, F7, F8.

Tiêu chuẩn chống cháy: F1

Áp suất ngưỡng: (khuyến nghị) 200Pa – (tối đa) 450Pa

Chịu nhiệt độ: 100 °C

Product Features

Robust all-metal frame structure

Ultrasonic seamless bag structure

High-quality, fluffy, multi-layer polyester synthetic glass fiber

Optimized V-shaped filter bag structure, high dust holding capacity, low resistance, long service life

Structure Description

Robust leak-proof frame structure, each filter bag uses a double-layer U-shaped aluminum alloy reinforcement support, "V" shaped filter bag structure.

The filter material uses high-quality, fluffy, multi-layer polyester synthetic glass fiber, processed with special technology to form a dense structure, so that the filter achieves high dust holding capacity and low resistance. The needled and microfiber layers in the filter material also ensure filtration efficiency.

Ultrasonic seamless sealing, sealing three sides of the bag, ensuring that the filter will not be damaged in harsh environments. Each filter bag is equipped with a set of reinforcing ribs, dividing the bag into uniform horizontal airflow channels, allowing the bag to expand to the maximum extent, so that the airflow can pass through evenly, greatly increasing the usable area of the filter bag, increasing the dust holding capacity of the filter, and also reducing the pressure of the filter.

Efficiency

F6、F7、F8、F9

(Complies with the new European standard EN779-2012)

Product Applications

Widely used in cleanroom ventilation and air conditioning systems in optoelectronics, electronics, automotive, pharmaceuticals, and food industries, as well as ventilation systems in general factories and commercial buildings.

Constituent Materials and Applicable Conditions

Washable Synthetic Fiber Industrial Dust Bag Pocket Filter Clean Room Air Filter

SPECIFICATIONS


Frame Double-layer U-shaped aluminum alloy frame / Galvanized mine

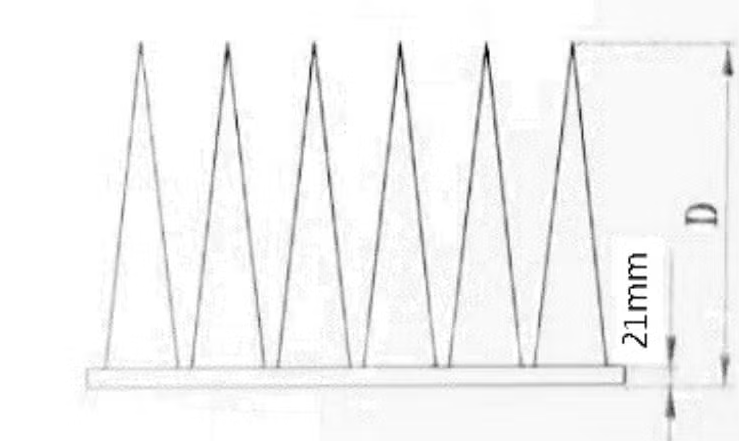

Optional frame thickness 20mm, 21mm, 26mm, 47mm

Filter material High-quality polyester synthetic fiber / glass fiber

Reinforcing rib Aluminum-zinc bracket

Connecting angle Robust, high-temperature resistant aluminum alloy angle

Maximum operating temperature 80℃

Maximum operating humidity 100%RH

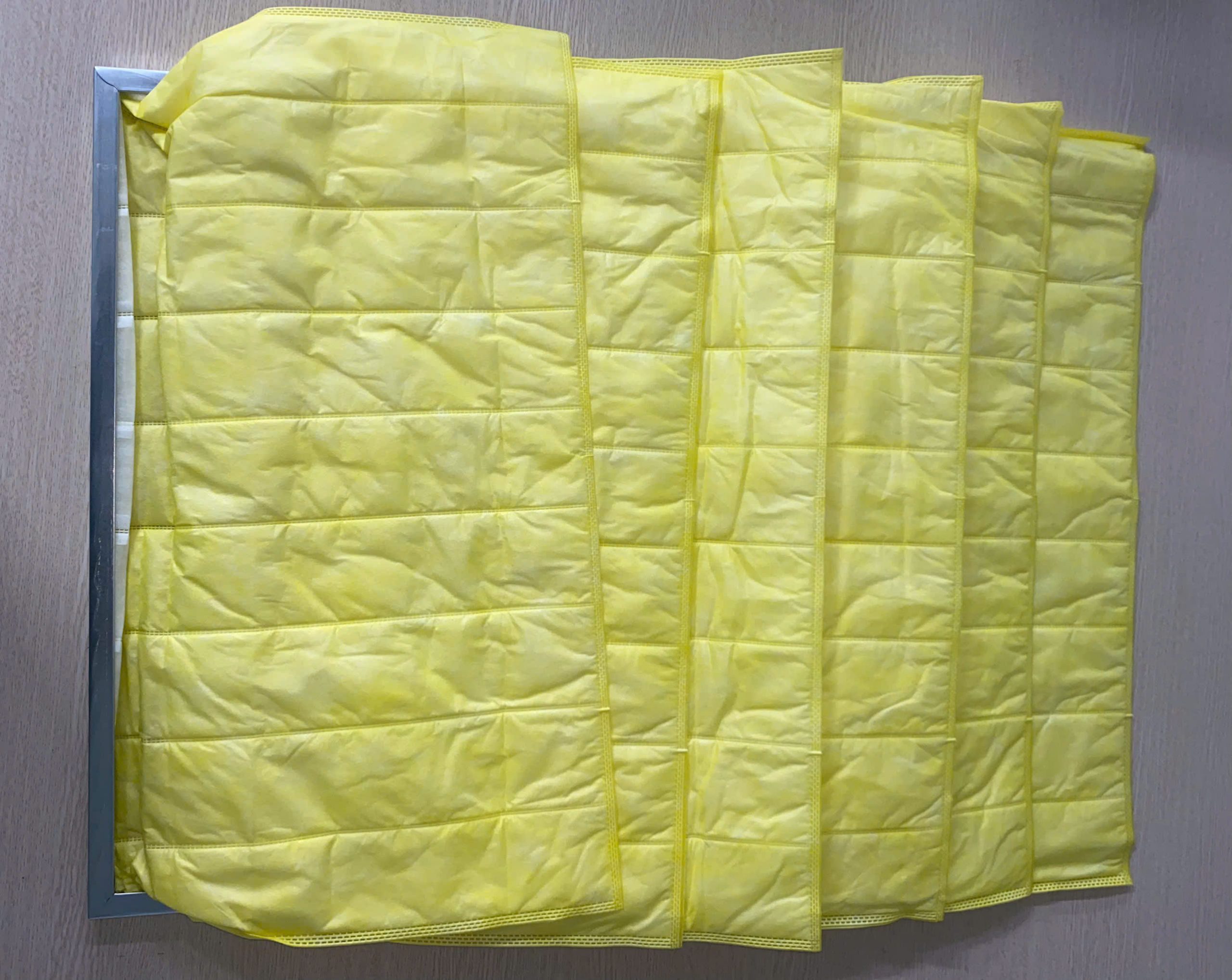

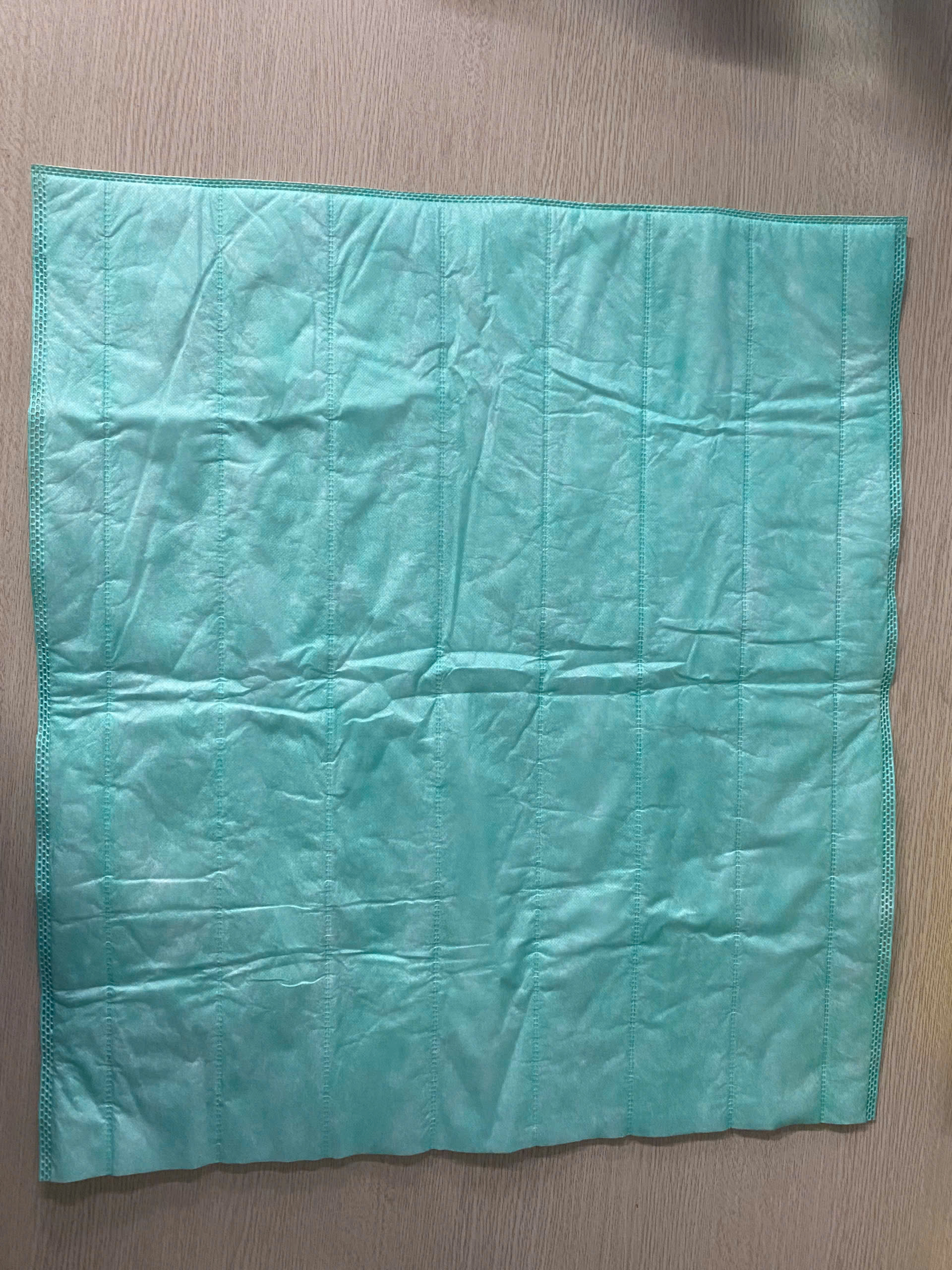

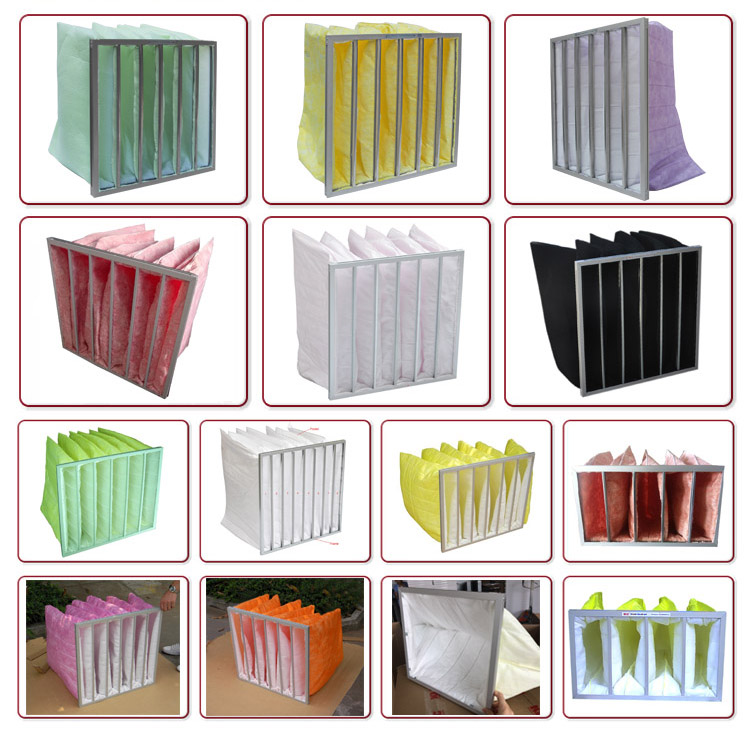

Individual pockets are sewn at automated KSL sewing center, where the conic shape of all pockets is guaranteed. The pockets are inserted to different type of frames,such as Aluminium frame,Galvanized steel frame,plastic ABS frames

Filters in all-plastic design meet high hygiene standards, especially in deploying in pharmacy, food industry and in the production of electronic components or opto engineering.

In addition to standard dimensions, we also make pocket filters with atypical dimensions.

ADVANTAGES
* Uniform pocket shape permits maximum air flow, minimum resistance
* High strength mechanical staking secures pockets to prevent
   separation under high turbulent conditions
* Preferred option for fly ash
* Simple to operate

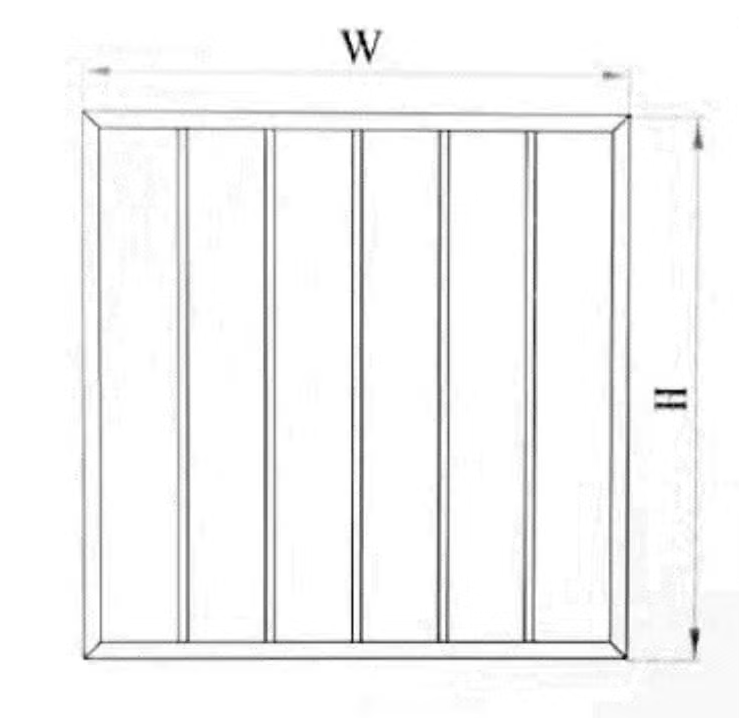

COMMON DIMENSIONS
