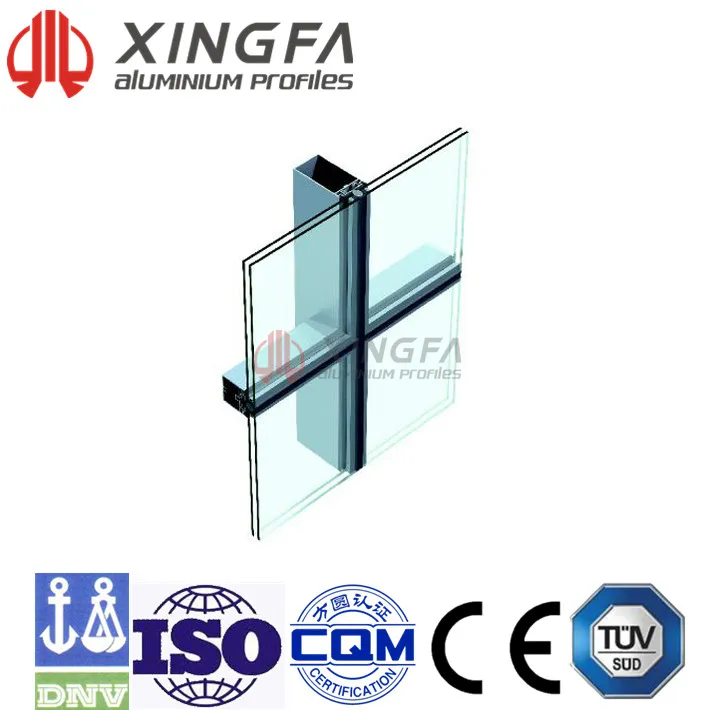

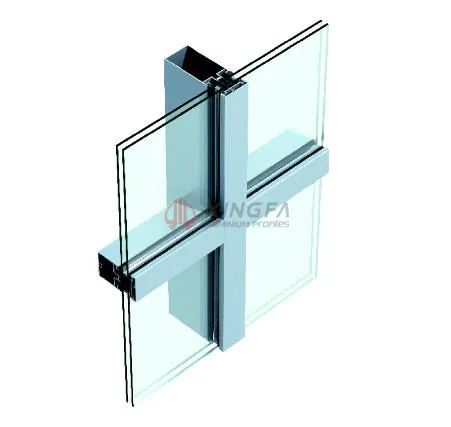

Product Name Glazed Curtain Wall with Vertical Exposed&Horizontal Hidden Frame
Temper T4, T5, T6
Aluminium Alloy Al6063, 6063A, 6005, 6061, 6082, 6101, 6106 and other 6XXX series
Color according to customers' requirement
Origin Foshan, China
Application Curtain Wall , Glazed Curtain Wall
Xingfa aluminium, established in 1984, provides professional glazed curtain wall system and curtain wall frame to our customers.
| Product Name | Glazed Curtain Wall with Vertical Exposed&Horizontal Hidden Frame |
| Material | aluminium alloy 6063, 6063A, 6061, 6082,6005, 6106,6101,6351 |
| Temper | T4, T5, T6 |
| Thickness |
up to 1mm |
| Surface Finishing |
Mill Finsihed, Anodized, Electrophoresis, Powder Coating, PVDF, Wooden Finishes |
| Packing |
protective film, compound kraft paper, shrink film, plastic interlayer, XINGFA logo paper, wooden case, carton or other material client's preference |
| Origin | Foshan, China |
| Features |

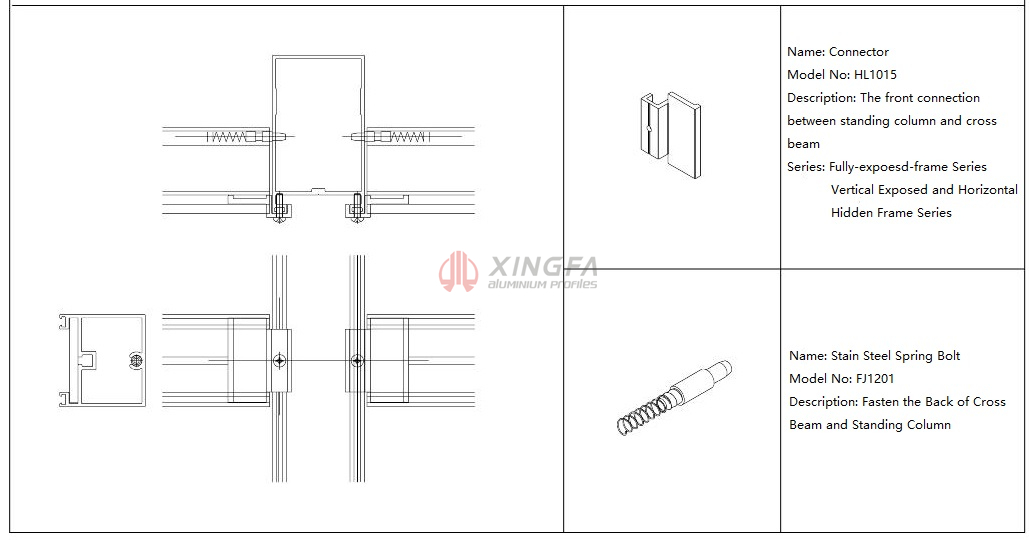

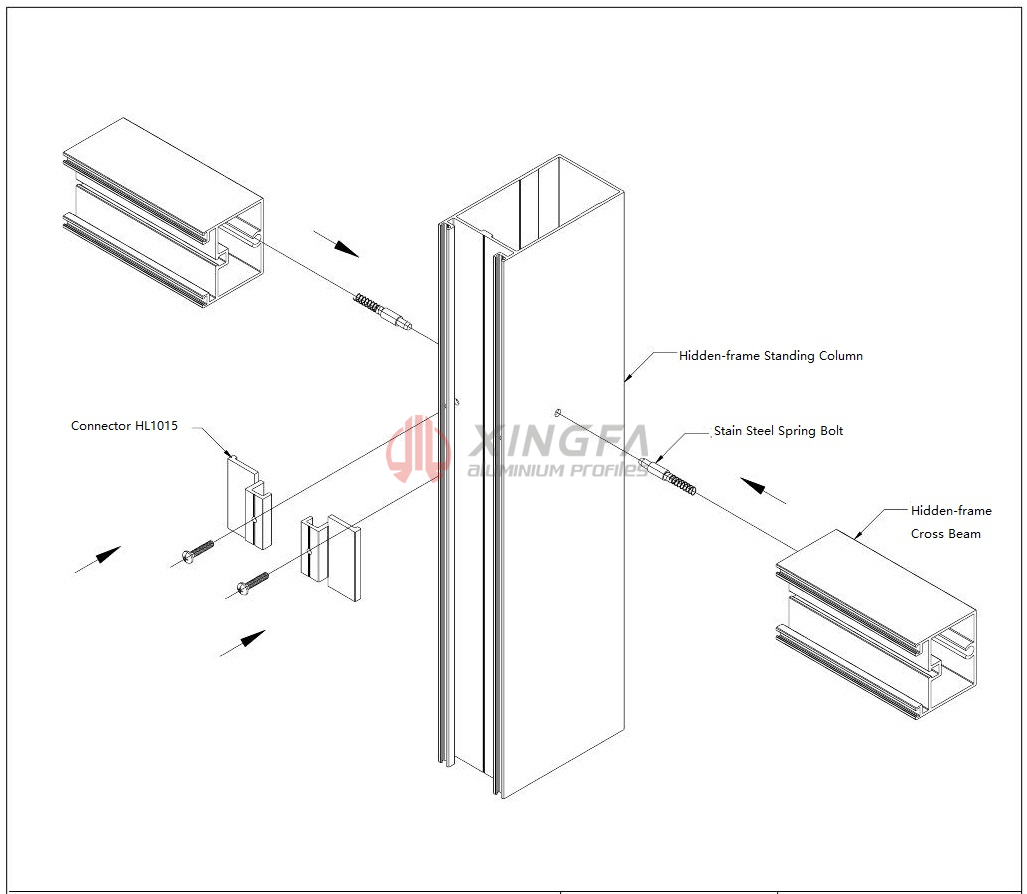

①High Universality The same system can combine exposed frames, hidden frames and semi-hidden frames freely. ②Indoor Visual Area Simple and Unified Hidden frame curtain wall hides sub-frame in the rabbet of the joist. The effect of the exposed frames, hidden frames and semi-hidden frame in indoor visual area are concordant. Meanwhile, it also solves the common problem of the traditional hidden frame that the sub-frame is not on the same level with the joist due to the error of machining install. ③Good Mechanical Property of Section Compared with the traditional open-ended profile, crossbeam is closed-ended profile, which is not easy to be out of shape under the effect of panel weight. ④Optimizing Surface Treatment of Sub-frame Glass sub-frame doesn’t need special surface treatment. Because sub-frame is hidden in the rabbet of joist, whatever the joist use any surface treatment and the sub-frame still use anodizing. ⑤Convenient the Connect Way of Main Column and Crossbeam The back-end of crossbeam uses stainless spring bolt. The front-end uses aluminium connector and have effective connection with main column spring bolt and connector is pressed together, which reduces the crossbeam deformation led by the weight of board. Meanwhile, it also solves the problem that the closed-ended crossbeam needs to be installed. ⑥Saving the amount of profile. Combined with our company production equipment and technics, the amount used of curtain wall per square meter can save 1-2kg compared with the mainstream market system profile.
|
